Aluminum Perforated Folding grilles doors| Commercial side sliding closures
The Full vision shop security folding door is widely used in commercial centers and shopping malls, it is made of polycarbonate panel and aluminum sections.
| Max width | 35meters | |
| Max Height | Manual 4.5m/motorized 6m | |
| Aluminum color | White, black, sliver | |
| panel thickness | 2.2mm | |
| Single Panel width | 11cm,15cm,22cm,26cm,29cm | |
| frame thickness | 10mm | |
| Pocket width | 8% of total width | |
| Operation | Manual or motorized | |
| Open direction | One side open or bi-folding |
ITEM DESCRIPTION:
The Aluminum Perforated Folding grilles is widely used in commercial centers and shopping malls, this door is
assembled with aluminum perforated panel, which can provide security for your shop and adequate airflow, by
customizing the curve rail, it can be compatible to any shape of door openings.
APPLICATIONS:
• supermarket, shopping mall, jewelry shop, coffee shop, club bar, brand chain stores
Panel options:
► Single panel width: 100mm, 130mm, 150mm, 180mm, 210mm, 230mm, 260mm, 280mm, 300mm

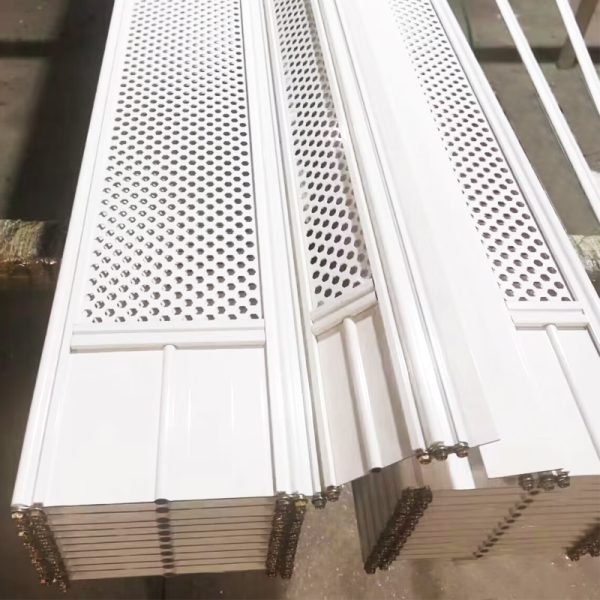

► Grill panel: 10mm aluminum rod fixed with high quality aluminum frame to provide security and airflow
► Operation: manual operation or motorized operation
Track System
►35mm*45mm aluminum track for straight door opening, it can also be used for curve opening but need
pre-formation by bending machine
►35mm*55mm aluminum track for curve opening. it can be bend easily and can also be used for straight openings.
Maximum size
►maximum width of Polycarbonate Folding Sliding Door is 35meter,
►maximum height is 4.5meter for manual operation door
►maximum height is 6.0meter for motorized operation door
Lock and bolts
►each folding door will be supplied with one set lock and two keys; the lock can be open from both sides.
►Gound bolts and dust cover will be provided 1set every 1meter width.
Aluminum Color
the finish of aluminum is powder coating or anodize. the normal color is natural aluminum, white and black.
if you need other color, please send color samples, and we will customize color for you
Stacking pocket size
the pocket size will be about 8% of the total door width, we will work out the detailed pocket size according to
your data.
Motor Specification
*Motor Voltage / Frequency: single phase 220V/50Hz, three phase 380V/50Hz, 110V/60Hz is also available
*Motor remote controls: 2pcs or more
*Motor lifting Force: 300KG, 600KG, 800KG, 1000KG, 1500KG, 2000KG
*Optional: backup battery, alarm system, stopping device, cellphone control
WARRANTY
5 years warranty for folding sliding security grilles we can replace the damaged panel during transport
Shipment and Delivery
plywood box packing for LCL, foam and carton packing for FCL
