Aluminum Side folding Grill Door | Shop folding sliding security grilles and closures

The Full vision shop security folding door is widely used in commercial centers and shopping malls, it is made of polycarbonate panel and aluminum sections.

Max width 35meters
Max Height  Manual 4.5m/motorized 6m
Aluminum color White, black, sliver
panel thickness 2.2mm
Single Panel width 11cm,15cm,22cm,26cm,29cm
frame thickness 10mm
Pocket width 8% of total width
Operation Manual or motorized
Open direction One side open or bi-folding

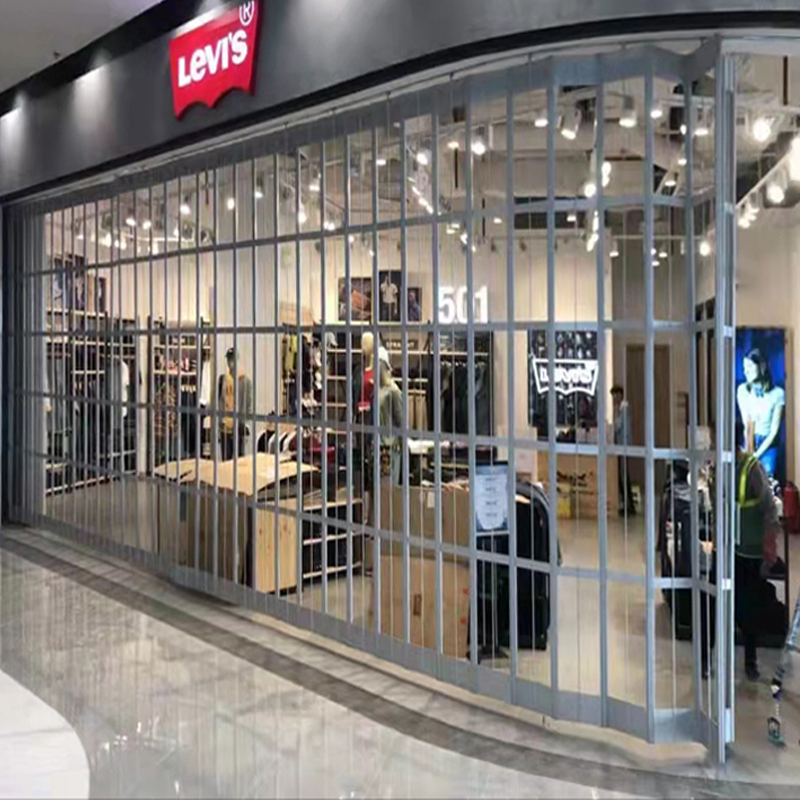

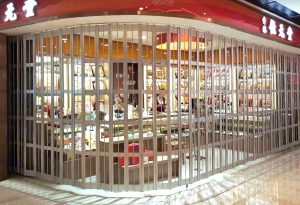

The Aluminum Side Folding Grill Door is widely used in commercial centers and shopping malls, it is assembled
by aluminum rods and aluminum panels, which can provide security for your shop and adequate airflow, and by
customizing the curve rail, it can be compatible to any shape of door openings.

•  supermarket, shopping mall, jewelry shop, coffee shop, club bar, brand chain stores

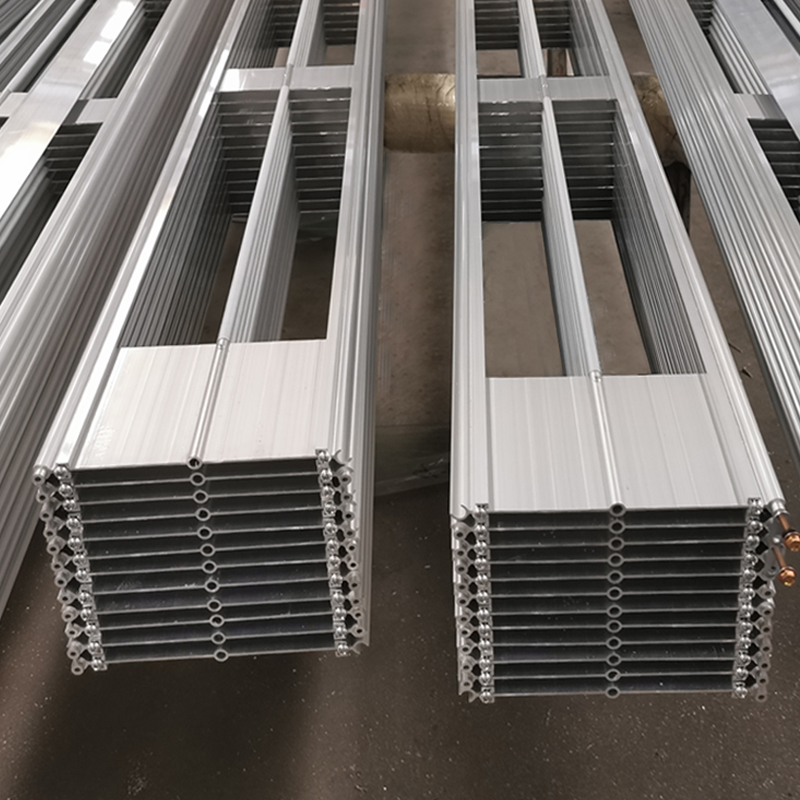

Panel options:
► Single panel width: 100mm, 130mm, 150mm, 180mm, 210mm, 230mm, 260mm, 280mm, 300mm
► Grill panel: 10mm aluminum rod fixed with high quality aluminum frame to provide security and airflow
► Operation: manual operation or motorized operation

Track System
►35mm*45mm aluminum track for straight door opening, it can also be used for curve opening but need
pre-formation by bending machine
►35mm*55mm aluminum track for curve opening. it can be bend easily and can also be used for straight openings.

Maximum size
►maximum width of Polycarbonate Folding Sliding Door is 35meter,
►maximum height is 4.5meter for manual operation door
►maximum height is 6.0meter for motorized operation door

Lock and bolts
►each folding door will be supplied with one set lock and two keys; the lock can be open from both sides.
►Gound bolts and dust cover will be provided 1set every 1meter width.

Aluminum Color
the finish of aluminum is powder coating or anodize.  the normal color is natural aluminum, white and black.
if you need other color, please send color samples, and we will customize color for you

Stacking pocket size
the pocket size will be about 8% of the total door width, we will work out the detailed pocket size according to
your data.

Motor Specification
*Motor Voltage / Frequency: single phase 220V/50Hz, three phase 380V/50Hz, 110V/60Hz is also available
*Motor remote controls: 2pcs or more
*Motor lifting Force: 300KG, 600KG, 800KG, 1000KG, 1500KG, 2000KG
*Optional: backup battery, alarm system, stopping device, cellphone control

5 years warranty for folding sliding security grilles, if there is quality problem you can’t fix, we can replace the products.

Shipment and Delivery

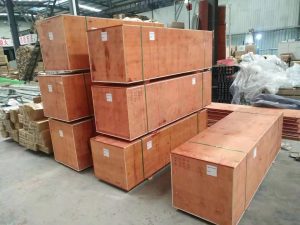

plywood box packing for LCL, foam and carton packing for FCL
