Clear Vision PC Rolling shutter slat | Polycarbonate roller shutter blade PC120
The polycarbonate shutter slat PC100 is the major component of a clear roller shutter door, it is made of 100% high quality polycarbonate raw material
| Model No. | PC-120 |
| Material | 100% raw PC material |
| Edge diameter | 5mm |
| Slat size | 120mm×100meter |
| Thickness | 1.2mm/1.5mm |
| Color | Full transparent |
| Weight | 25kg/roll |
| Qty/sqm | 8.3meter |
| Packing | packing bags/pallet packing |
ITEM DESCRIPTION:
The clear vision PC rolling shutter slat PC100 is the important part of a Polycarbonate roller shutter or a Polycarbonate folding Door, it is made of 100% PC raw material. A complete curtain of clear vision PC rolling shutter is composed of polycarbonate rolling shutter slat and aluminum connecting bar and other spare parts.
TECHNIACAL DATA
Item No. | Length(m) | Weight(kg) | Center thickness(mm) | Side thickness(mm) |
PC-100 | 100 | 25 | 1.2/1.5/1.8/2.0 | 4.5-5.0 |
PC-120 | 100 | 30 | 1.2/1.5 | 4.5-5.0 |
PC-150 | 100 | 38 | 1.2/1.5 | 4.5-5.0 |
PC-200 | 100 | 50 | 1.2 | 5.2 |
PC-250 | 100 | 62 | 1.2 | 5.2 |
PC-300 | 100 | 75 | 1.2 | 5.2 |
APPLICATIONS:
• commercial clear vision PC Rolling shutter / polycarbonate shop security closure / Clear view Polycarbonate roller shutter
Functions
• Transparency: 80%~90% transparency, transparency varies according to the thickness of the slat
• UV resistance: Provides 80% UV resistance
• Impact resistance: Provides better safety and protection than glass
• Heat dissipation: Easy to maintain the temperature of the interior space, 4 times better than glass
• Flame retardancy: horizontal HB/vertical V2
• Advertising effect: Display store products when the store is closed
• Eco-friendly: polycarbonate materials can be recycled and meet ROHS standards,
• Soundproof: provide 3-4DB sound resistance BETTER THAN GLASS
• Light weight: polycarbonate curtains weight is approximately 5 kg/m²
• Weather resistant: Works well in the temperature range of -40 to 120°C
• Warranty: 5 years warranty.
OUTPUT CAPACITY

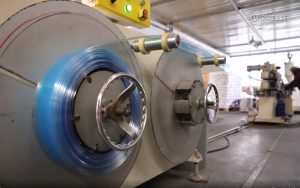

we use highly efficient injection machine; the output capacity is 1000meters/day
if you need the shipment urgently, please send your order in advance
MATERIAL QUALITY
we use Samsung South Korea and Makrolon Germany PC raw material for making Transparent Rolling Door slats
If you need customized materials, we can purchase the materials for you
WARRANTY
5 years warranty for Transparent Rolling Door slats, we can replace for imperfect or discolored slats.
SHIPMENT AND DELIVERY
packing bag or pallet packing
SIMILAR PRODUCTS
we still have more polycarbonate slat models, clear vision PC Rolling shutter slat, full vision crystal roller shutter blade, impact resistant polycarbonate roller shutter door slat, clear vision acrylic roll up door plank, clear view PC roller shutter links, affordable transparent polycarbonate rolling shutter slat, Polycarbonate roller shutter blade, Cheap full vision PC roller shutter door slat, crystal roller shutter slat, fire-proof PC rolling door slat, etc., if you are looking for more options please check our other products.
